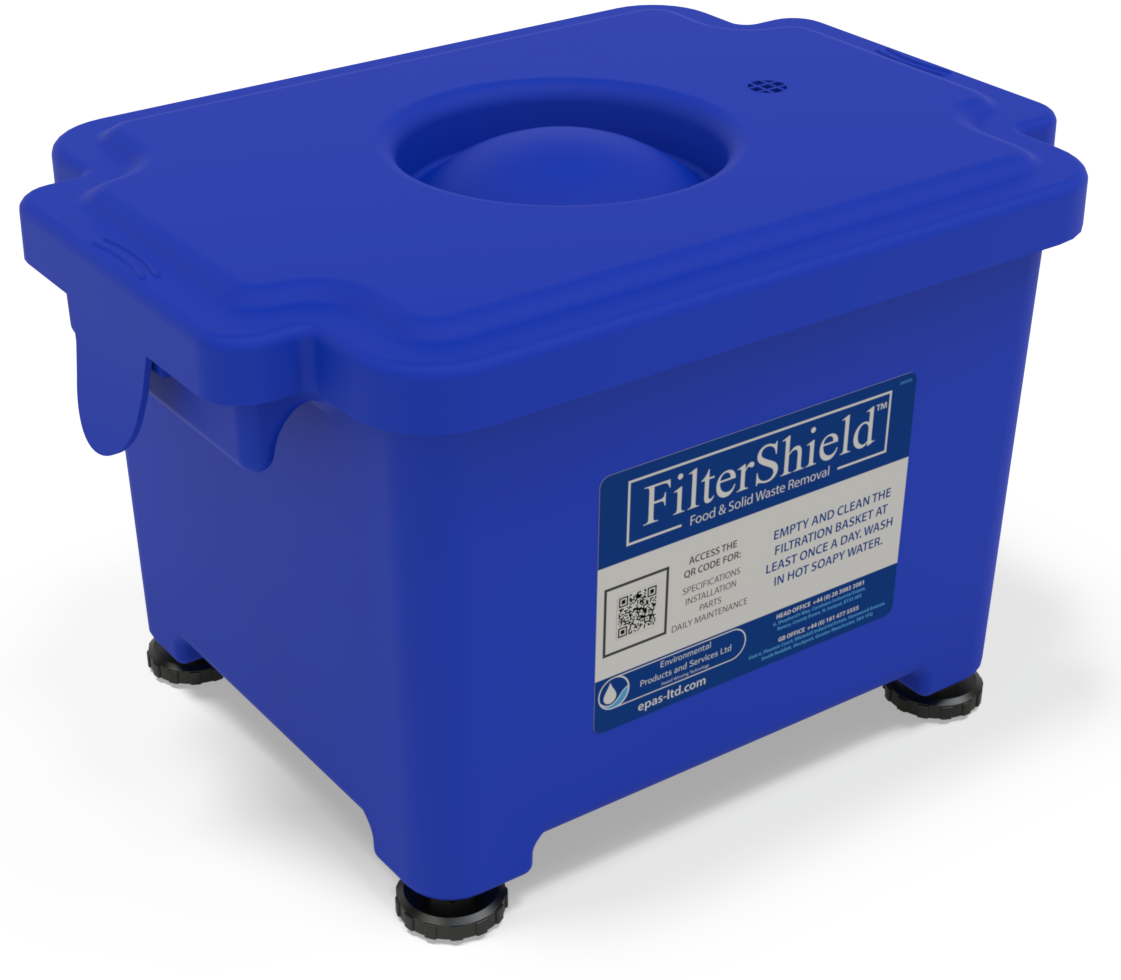

Technical Specification - FilterShield™ 2000

Choice of outlet configurations to suit current plumbing configuration.
Adjustable feet for self levelling and cleaning.
Provided with FlexiPlumb connection fittings to allow for misalignment of plumbing.
De-waters all solid contaminants reducing BOD.
Odour Fress.
No Power supply required.
No replaceable membrane filters required

Plumbing Connections
Inlet 1″½/41mm
Outlets 1″½/41mm

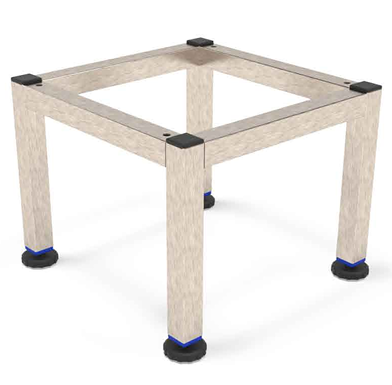

Stainless Steel Hygiene Stand
Optional Extra

Global GreenTag LCA Rate Gold Certification
ASME A112.14.3 & A112.14.4 (American Society of Mechanical Engineers)
NSF International (National Sanitation Foundation)
CSA (Canadian Standards Association) - Grease Interceptors
UL (Underwriters Laboratory)
IAPMO (International Association of Plumbing and Mechanical Officials) Uniform Plumbing Code Certification Mark
UKCA (UK Conformity Assessed)
CE - Conformity with Health, Safety and Environmental Protection \ Standards with the European Economic Area (EEA)
EN1825 (European Standard for Grease Separators)
KIWA (ETA DK, Swedac & SINTEF) - Sweden, Norway and Finland. European Institution for Testing, Inspection and Certification
SHASE-S 217:2016 (Japanese Grease Management Standard for Grease Interceptors)

Head Office +44 (0) 28 3083 3081

www.epas-ltd.com

sales@epas-ltd.com

GB Office +44 (0) 161 477 5555

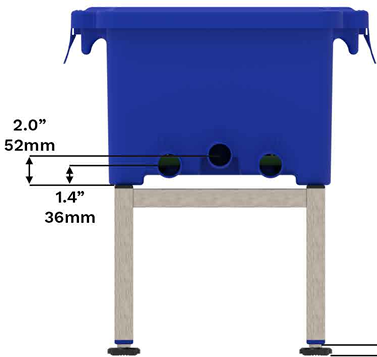

Outlet Ø
½”
41mm

Intlet Ø
½”
41mm

Outlet Ø
½”
41mm

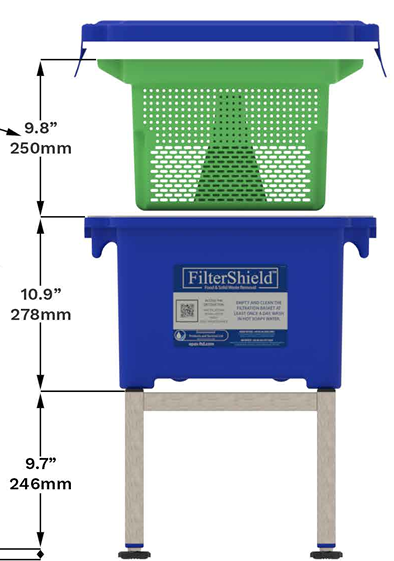

Height required for Filter Basket Removal

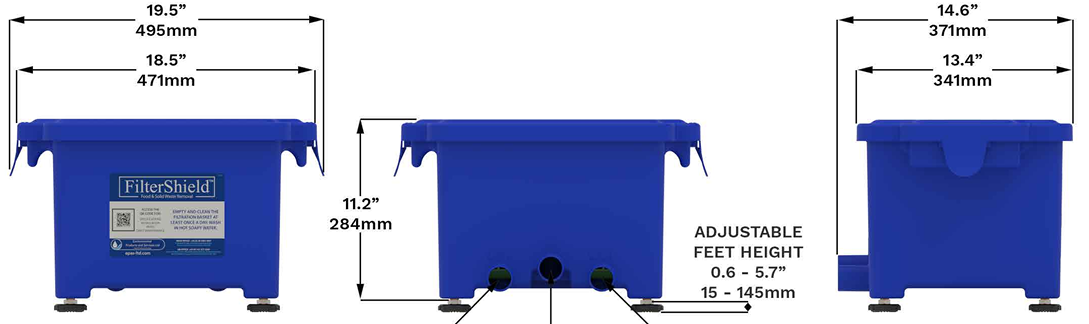

ADJUSTABLE FEET HEIGHT
0.6 – 5.7″
15 – 145mm
